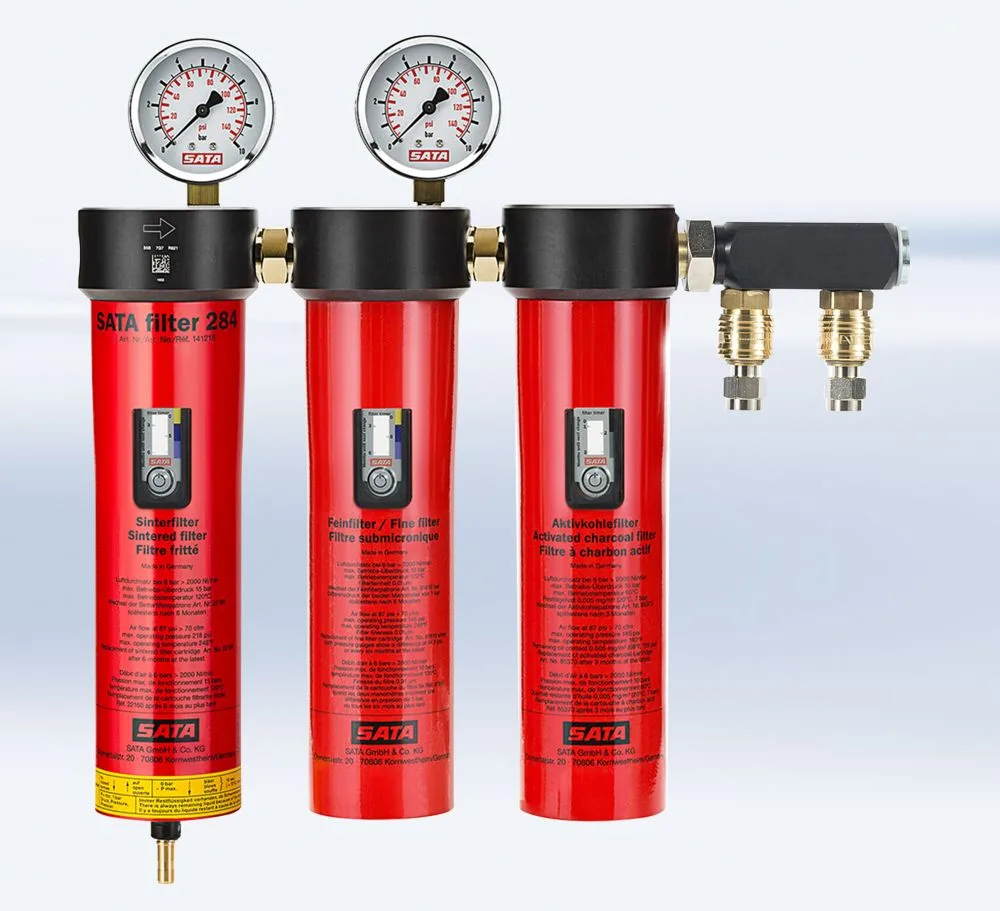

SATA filter 284 triple-stage sintered filter/fine filter/activated charcoal filter, pressure regulator, outlet module (2x air coupling/nipple 9 mm)

Shop SATA Products

SATA filter series 200

Combi fine filter unit. Easy to maintain. Economical.

Economical combi fine filter unit for highest air quality requirements in paint application as well as for air-ventilated breathing systems.

For installation in spray booths, prep decks and other workshop areas.

  Earn 890 Reward Points
£889.99 Price: (inc VAT)

Confirm option

SKU: 141218 Categories: ,


Product Benefits

  • Excellent compressed air quality – removes oil, water and particles
  • User-friendly and easy to maintain
  • Activated charcoal cartridge (third filter stage) removes oil vapours from the breathing air
  • 2,000 Nl/min air flow – sufficient air volume to supply two spray guns simultaneously with both clean spraying air and breathing air
  • Air inlet: G 1/2″ female thread; Air outlet: 1/4″ male thread


Technical Information
Packaging unit 1,0 Pieces
Net weight 1,206 – 5,868 kg
Max. inlet air pressure 10,0 bar
Max. air outlet pressure 10,0 bar
Number of filter stages 1 – 3
Max. air flow 2000 Nl/min
Max. ambient temperature +60 – +120 °C
Exchange interval first filter stage 6 Months
Exchange interval second filter stage 6 Months
Exchange interval third filter stage 3 Months
* All information without guarantee – errors and changes reserved.
** All data refer to the entire product range and not to individual variants.
